Description

Drum Machine with sounds and rhythms of Cumbia Programmed on the Arduino platform and based on the Bleep Drum from Bleep Labs.

The same clasic machine by Oficina de Sonido, now in a compact affordable version.

Collaboration with Yeffry Ruta Mare in graphic design.

• 4 Sounds: Kick, Guiro, Cow Bell and Conga
• 2 with Pitch control (Cow Bell and Conga)
• 4 sequences of 32 steps each
• You can record sequences in real time just by playing them

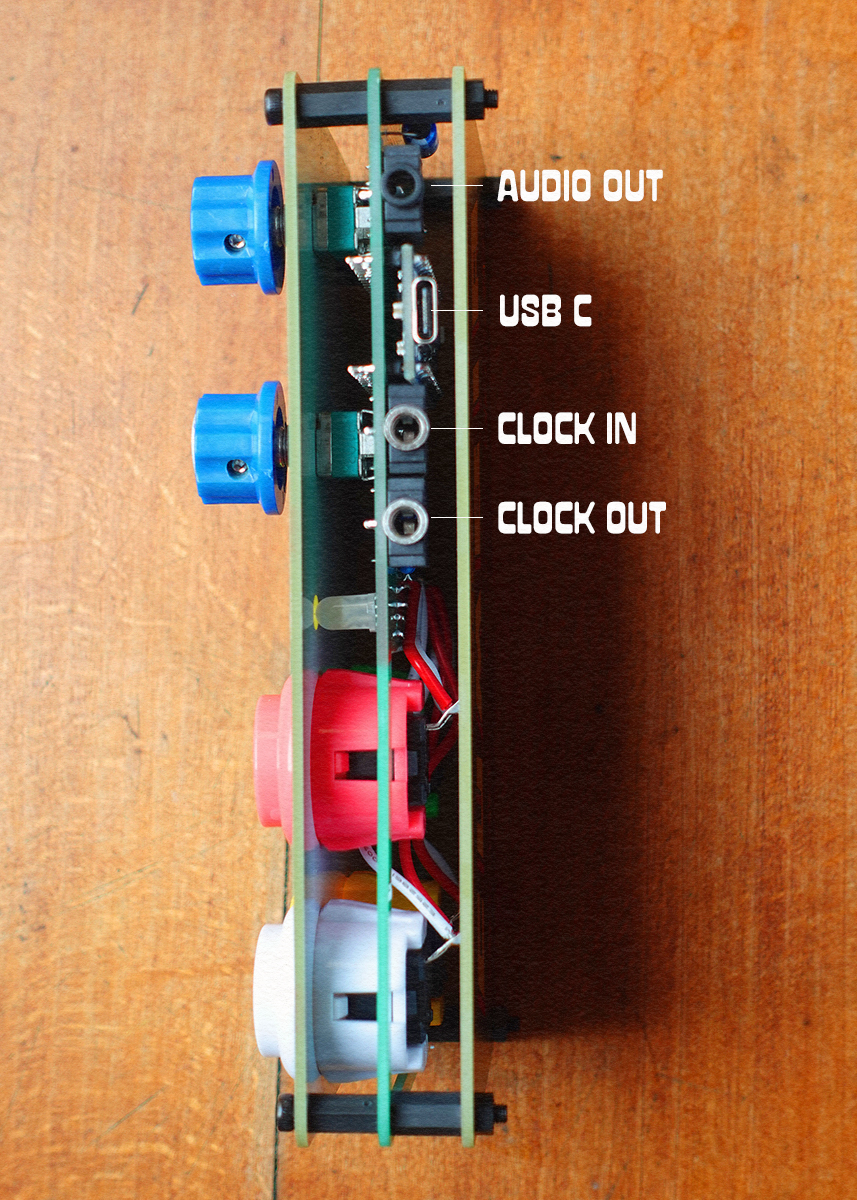

• Clock input to synchronize with other machines
• Tap Tempo

  MANUAL (PDF)

play: starts playing the sequence, if you press it again the sequence stops. rec: start recording what you play, if you press it again, return to play mode ctr + some pad: switch between the 4 available sequences ctr + play: the sequence plays in reverse play + ŕec: delete the sequence ctrl + tap: puts the battery in sync mode, receives the pulse through sync conector tap: tap tempo

Power (power) You can power the Hanan Cumbia through a USB-C cable (usb-c to Usb-A) and a charger or with a 9-volt power supply (negative tip), the same used for effects pedals.

Here is a video of the BIG VERSION WITH BOX AND SILKSCREEN.
Just for reference this machine are the exact same functions than the Mini version.
https://www.youtube.com/watch?v=WtZVGZuE5I0&t=1s

The project is based on the Bleeplabs Bleep Drum. Hanan Cumbia uses the same Creative Commons Attribution-ShareAlike 3.0 license.
