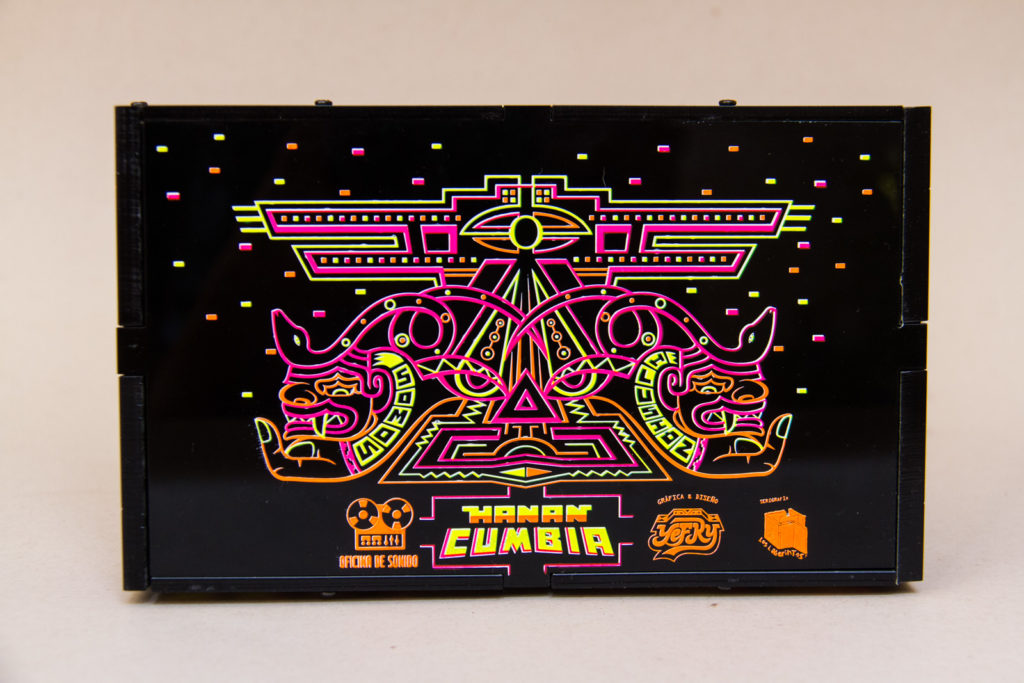

Collaboration with Yeffry Ruta Mare in graphic design and Los Laberintos in screen printing.

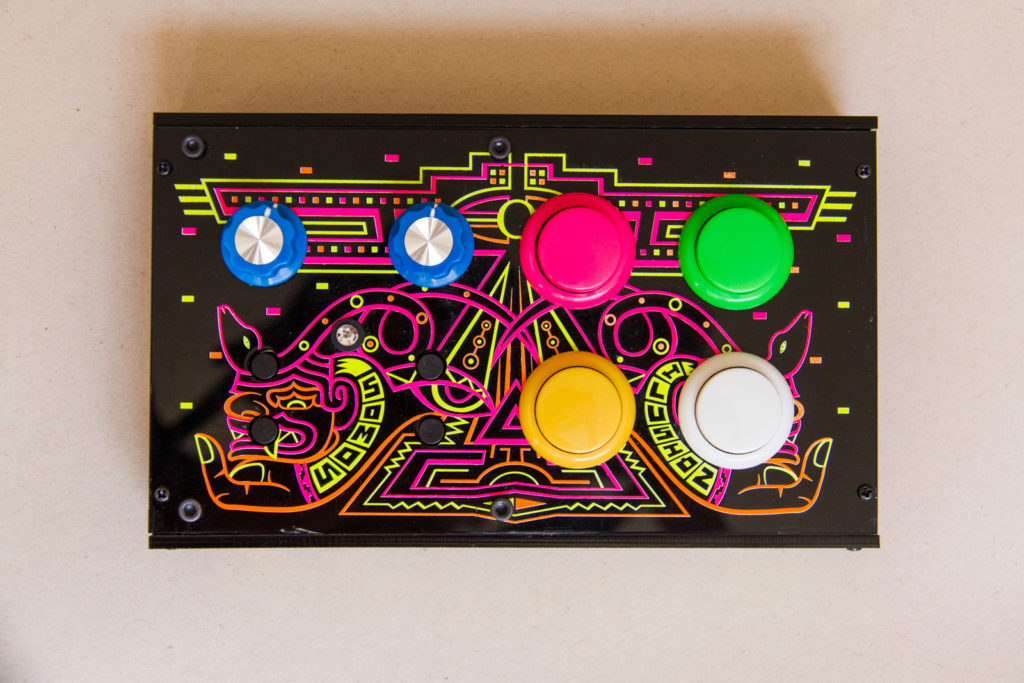

Drum Machine with sounds and rhythms of Cumbia Programmed on the Arduino platform and based on the Bleep Drum from Bleep Labs.

4 Sounds: Kick, Guiro, Cow Bell and Conga
2 with Pitch control (Cow Bell and Conga)
4 sequences of 32 steps each

You can record sequences in real time just by playing them
Clock input to synchronize with other machines
Tap Tempo

· play: starts playing the sequence, if you press it again the sequence stops.
· rec: start recording what you play, if you press it again, return to play mode
· ctr + some pad: switch between the 4 available sequences
· ctr + play: the sequence plays in reverse
· play + rec: delete the sequence
· ctrl + tap: puts the battery in sync mode, receives the pulse through sync conector
· tap: tap tempo

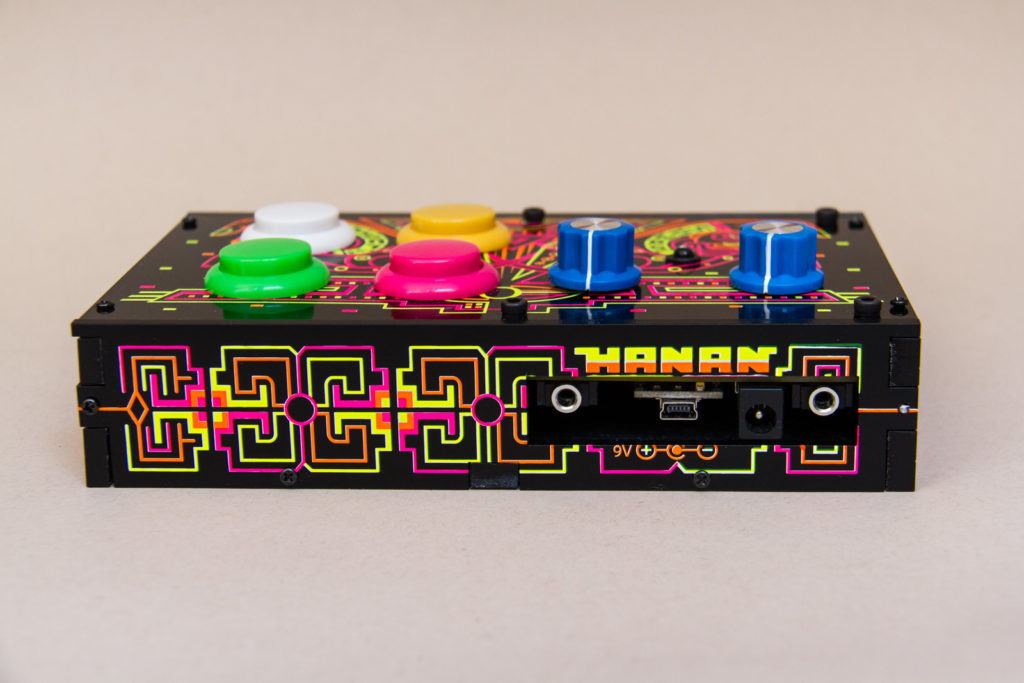

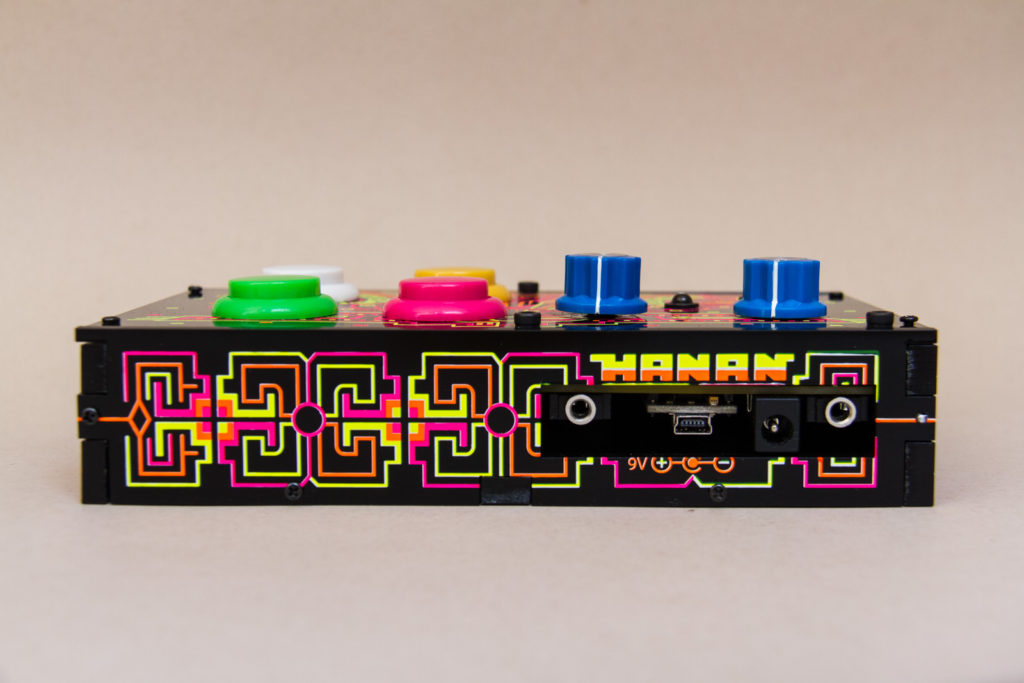

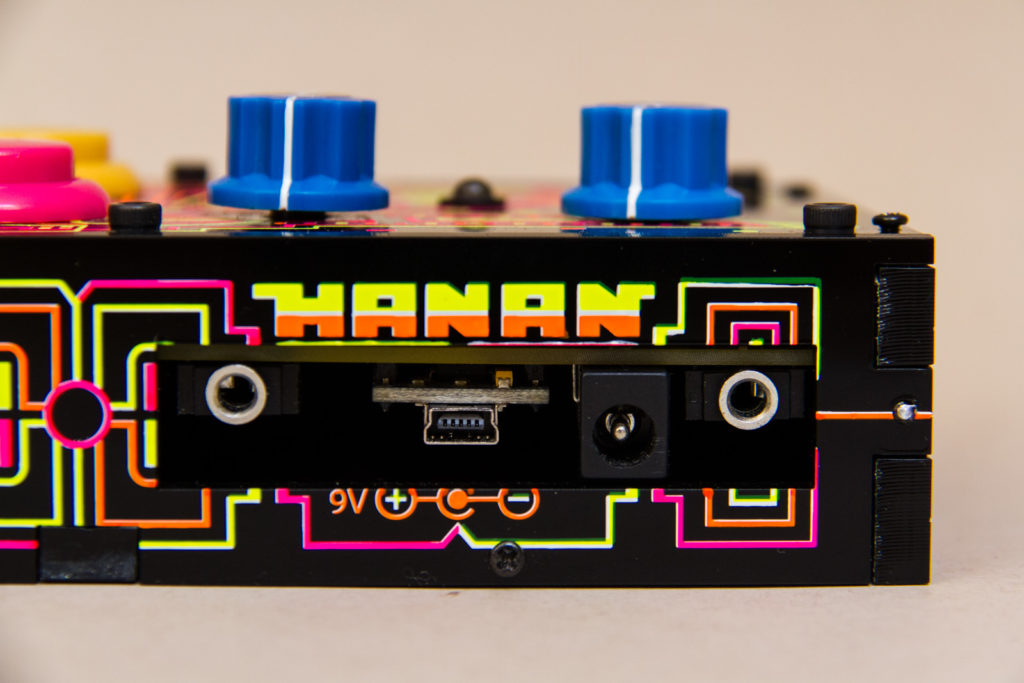

Power (power) You can power the Hanan Cumbia through a micro USB cable and a charger or with a 9-volt power supply (negative tip), the same used for effects pedals.

The project is based on the Bleeplabs Bleep Drum. Hanan Cumbia uses the same Creative Commons Attribution-ShareAlike 3.0 license.

HTR2 – Hanan Cumbia

El proyecto está basado en la Bleep Drum de Bleeplabs. Es por esto que Hanan Cumbia utiliza la misma licencia  Creative Commons Attribution-ShareAlike 3.0 license.

A continuación los archivos para que puedas construir la tuya!
